Visual iQ Videoscope

Waygate Technologies Everest Mentor Visual iQ Videoscope – 3.9 mm and 6.1 mm / 3.0 m each

Professional videoscope for visual inspection – Waygate Technologies / Baker Hughes

For sale is a Waygate Technologies Mentor Visual iQ (MViQ) Videoscope system for professional visual inspection heavy accessible areas.

According to available information, the system was installed in January 2023 newly acquired from Baker Hughes Digital Solutions and will be original transport case and the accessories listed below.

Technical data

• Manufacturer: Waygate Technologies / Baker Hughes

• Model: Mentor Visual iQ (System Order Number: MVIQCSYS2-CO)

• System: Mentor Visual iQ with 6.5-inch color display and 32 GB internal memory

• Probes: 3.9 mm and 6.1 mm diameter

• Probe length: 3.0 m

• 3.9 mm quick-change probe: Angle of view 80°, depth of field 6–80 mm, angulation at least 120° in all Directions

• 6.1 mm HD quick-change probe with 1.2 megapixel chip: integrated angle of view 50°, depth of field 50 mm up to infinity, angulation at least 160° in all directions; waterproof

• Additional XLG3 Black Tip interchangeable lens for the 6.1 mm probe: 120° angle of view, Depth of field 5–120 mm, viewing direction 0°

• Original transport case, Mounting arm kit and additional spare battery

• System Order Number: MVIQCSYS2-CO; other item numbers see scope of delivery (MVIQHP6130)

• Serial number Number of handset: 2251A0616

• Construction/version specification according to nameplate: 2022.51 HA_H

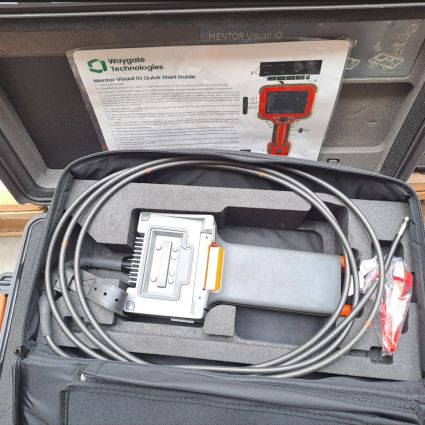

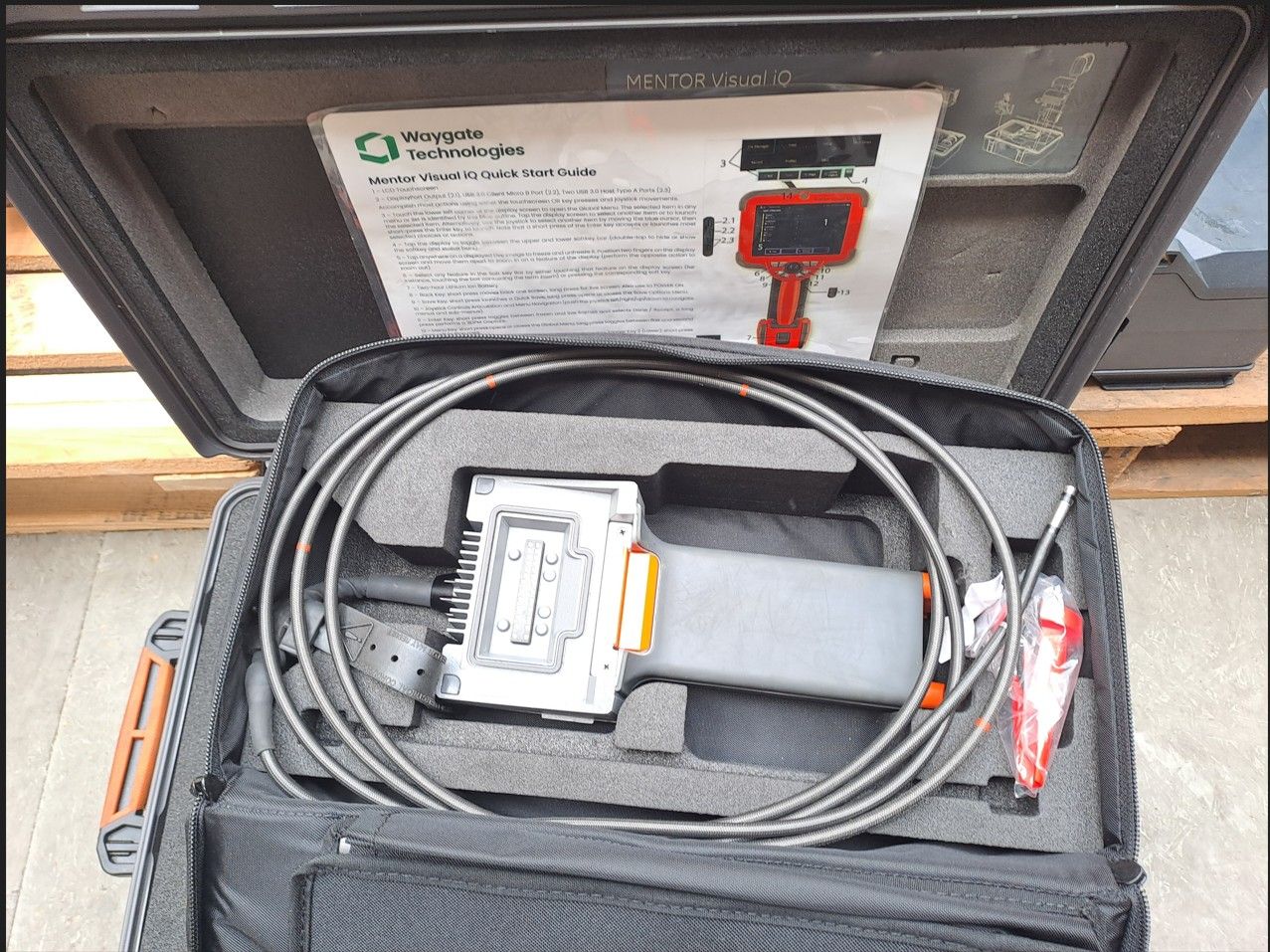

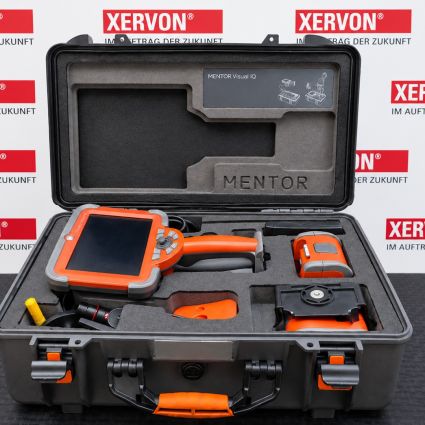

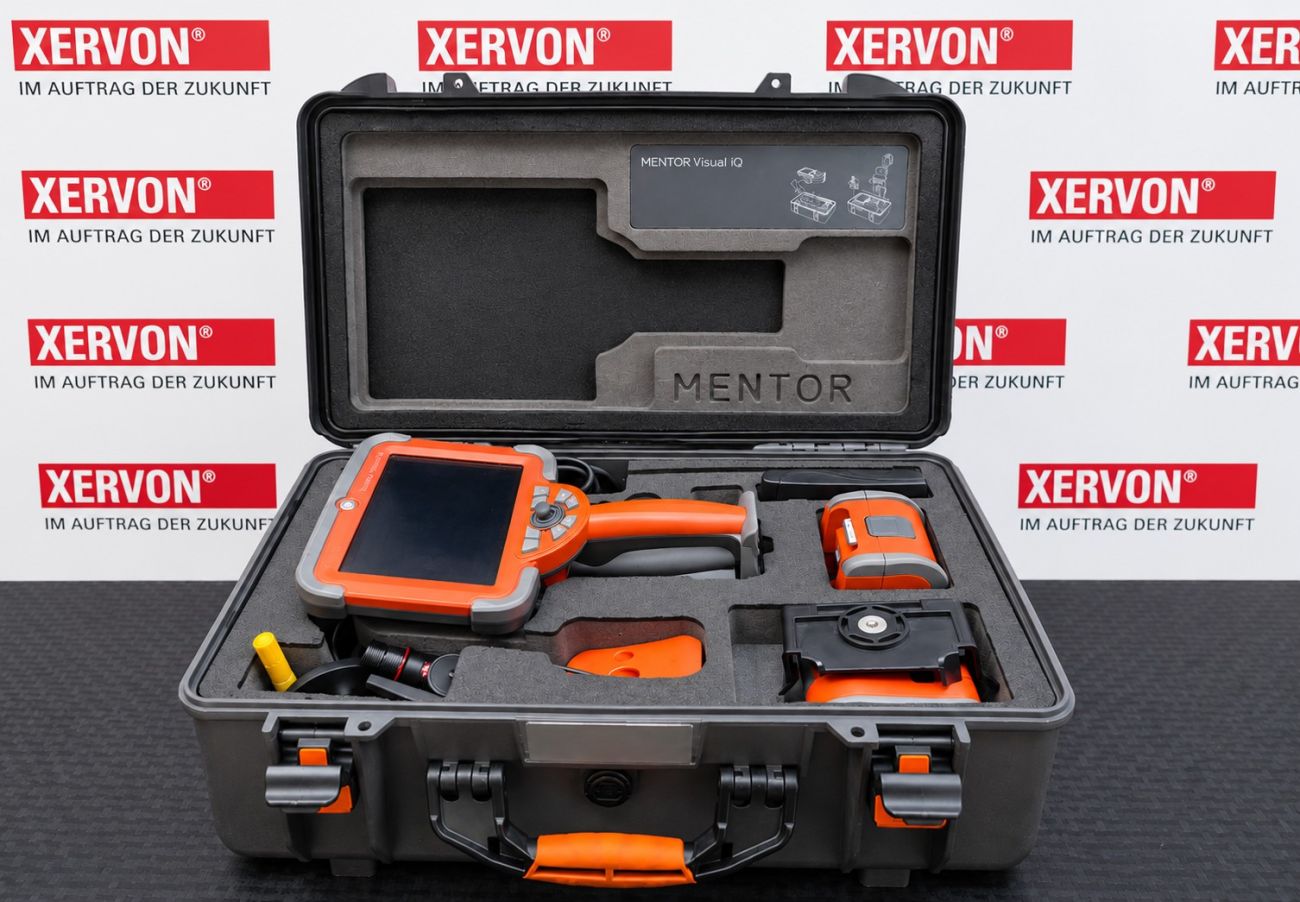

Scope of Delivery

• Mentor Visual iQ Videoscope System

• Two Flexible quick-change probes: Ø 3.9 mm / 3.0 m and Ø 6.1 mm / 3.0 m

• Original transport case

• Additional Spare battery

• Mounting Arm Kit, Probe storage bags, interchangeable lens boxes and thread protection rings according to order confirmation; additional interchangeable lens XLG3 Black Tip for the 6.1 mm probe


Areas of application

The Everest Mentor Visual iQ is particularly suitable for professional non-destructive visual inspections (Remote Visual Inspection / RVI), For example, in:

• Industry and Plant Engineering

• Machinery and Automotive Engineering

• Maintenance and maintenance

• Weld seam and component testing

• Engine and Transmission Inspection

• difficult accessible areas


Sales Price

23.900,00 € net plus VAT

The original purchase price approx. 50k € net.

Inspection and inspection possible by arrangement.

If you are interested or have any further questions, please do not hesitate to contact us. .
